Single Pin Power Cable Connector
IP44 MALE PLUG Confirming to CEE/IEC

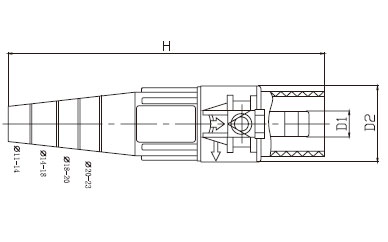

| Model |
Color |
Size |
| CM400QC-R |
Red |
|
D1 |
17.5 |
| CM400QC-Y |
Yellow |
|
| CM400QC-N |
Blue |
|
D2 |
43 |
| CM400QC-G |
Green |
|
| CM400QC-B |
Black |
|
H |
185 |
Parameter
- Rated Voltage (AC) 600V
- Rated Current400A
- Conductor Cross Sectional
Area (mm2) Min to Max 50 ~ 120 (mm2)
- Wiring Method Screw Terminals

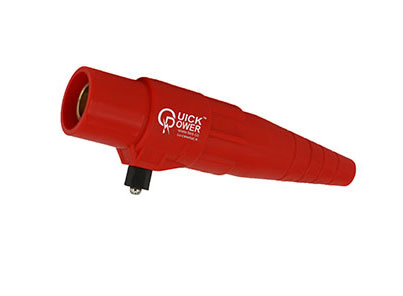

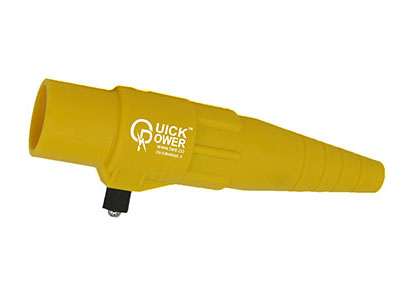

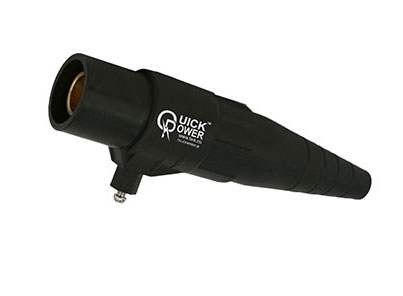

IP44 Female Connector Confirming to CEE/IEC
| Model |
Color |
Size |
| CF400QC-R |
Red |
|
D1 |
17.5 |
| CF400QC-Y |
Yellow |
|
| CF400QC-N |
Blue |
|
D2 |
43 |
| CF400QC-G |
Green |
|
| CF400QC-B |
Black |
|
H |
185 |
Parameter
- Rated Voltage (AC) 600V
- Rated Current400A
- Conductor Cross Sectional
Area (mm2) Min to Max 50 ~ 120 (mm2)
- Wiring Method Screw Terminals
