Single Pin Panel Mount Power Connector

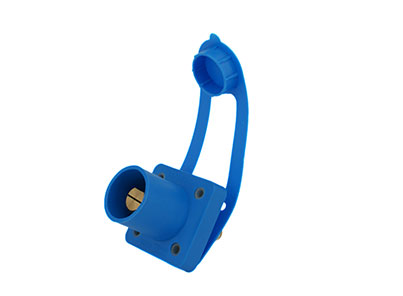

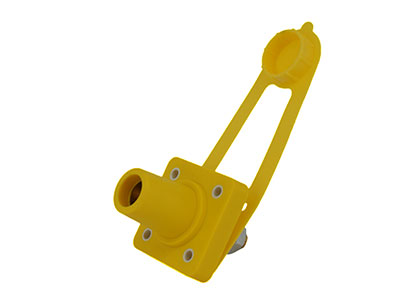

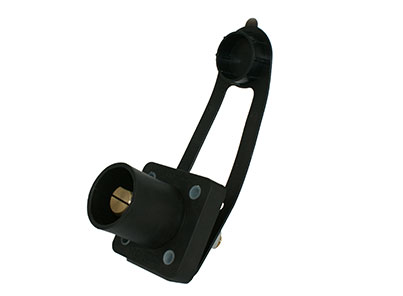

IP44 Male Plug Confirming to CEE/IEC

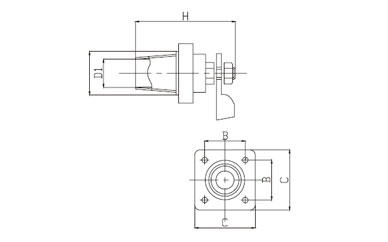

Model	Color		Size
PM400QC-R	Red		D1	17.5
PM400QC-Y	Yellow		D1	17.5
PM400QC-N	Blue		D2	43
PM400QC-G	Green		D2	43
PM400QC-B	Black		H	185

Parameter

Rated Voltage (AC) 600V
Rated Current400A
Conductor Cross Sectional
Area (mm²) Min to Max 50 ~ 120 (mm²)
Wiring Method Screw Terminals

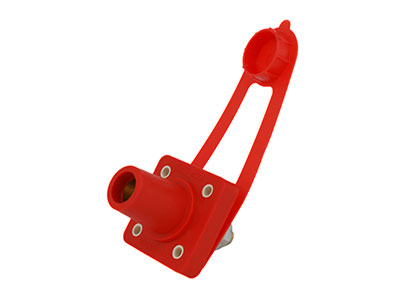

IP44 Female Connector Confirming to CEE/IEC

Model	Color		Size
PF400QC-R	Red		D1	17.5
PF400QC-Y	Yellow		D1	17.5
PF400QC-N	Blue		D2	43
PF400QC-G	Green		D2	43
PF400QC-B	Black		H	185

Parameter

Rated Voltage (AC) 600V
Rated Current400A
Conductor Cross Sectional
Area (mm²) Min to Max 50 ~ 120 (mm²)
Wiring Method Screw Terminals

↑
